JFC0402-0250TS

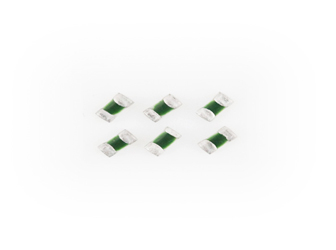

JFC0402TS系列慢速熔斷型表面貼裝薄膜，超小尺寸使它們非常適合用于空間受限的應用，如手持便攜式電子設備電路的二次保護。本系列產(chǎn)品無鉛化100%，符合ROHS指令要求。
| Part NO. |
Rated Current (A) |
Max Voltage Rating （V） |
Interrupting Rating |
Nominal Cold Resistance (Ohms) |
Nominal Melting I2t（A2sec） |
Nom Voltage Drop (mV) |
Nom Power (W) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|
| JFC0402-1500TS | 5 | 32 | 35A @32V DC | 0.0085 | 0.5310 | 52.44 | 0.26220 |
 |
| JFC0402-1400TS | 4 | 32 | 35A @32V DC | 0.0115 | 0.3084 | 57.00 | 0.22800 |
|
| JFC0402-1350TS | 3.5 | 32 | 35A @32V DC | 0.0135 | 0.3017 | 57.84 | 0.20244 |
|
| JFC0402-1300TS | 3 | 32 | 35A @32V DC | 0.0165 | 0.2032 | 60.58 | 0.18740 |
|
| JFC0402-1250TS | 2.5 | 32 | 35A @32V DC | 0.0185 | 0.1560 | 55.25 | 0.13813 |
|
| JFC0402-1200TS | 2 | 32 | 35A @32V DC | 0.0300 | 0.1000 | 70.62 | 0.14120 |
|
| JFC0402-1175TS | 1.75 | 32 | 35A @32V DC | 0.0390 | 0.0750 | 81.13 | 0.14198 |
|
| JFC0402-1150TS | 1.5 | 32 | 35A @32V DC | 0.0470 | 0.0560 | 86.70 | 0.13005 |
|
| JFC0402-1125TS | 1.25 | 32 | 35A @32V DC | 0.0600 | 0.0350 | 96.37 | 0.12046 |
|
| JFC0402-1100TS | 1 | 32 | 35A @32V DC | 0.0730 | 0.0200 | 87.45 | 0.08745 |
|
| JFC0402-0750TS | 0.750 | 32 | 35A @32V DC | 0.1050 | 0.0120 | 101.84 | 0.07638 |
|
| JFC0402-0500TS | 0.500 | 32 | 35A @32V DC | 0.1600 | 0.0053 | 93.35 | 0.04668 |
|
| JFC0402-0375TS | 0.375 | 32 | 35A @32V DC | 0.1930 | 0.0035 | 84.64 | 0.03174 |
|
| JFC0402-0250TS | 0.250 | 32 | 35A @32V DC | 0.400 | 0.0025 | 110.53 | 0.027635 |
|
